TriVisionX

• Cyclic Agentic Graphs: Intelligently routes, plans, analyzes, and drafts reports.
• Agent Subgraph Architecture:
  • Research Graph: Ingests document context to build comprehensive cited overviews.
  • Competitive Graph: Generates comparison matrices and competitive reports.
  • Coding Graph: Evaluates, generates, and self-corrects algorithms.
  • Data Analysis Graph: Parses tabular databases and extracts statistical summaries.
  • Summary Graph & Technical Graph: Provides quick-read summaries and deep-dive technical evaluations.
• Citation Auditing: Back-references every LLM claim to source documents and page numbers.

• Multi-Format Parsing: Built-in support for PDF, DOCX, and TXT files.
• MMR Search: Queries Pinecone vector stores using Maximum Marginal Relevance (MMR) to maximize retrieval diversity.
• Google GenAI Embeddings: Computes highly accurate semantic vector embeddings.

• Integrated Inbox: Seamlessly check messages and write emails from the dashboard.
• AI Draft Co-Pilot: Auto-generate replies and compose email templates based on custom context and tone preferences.

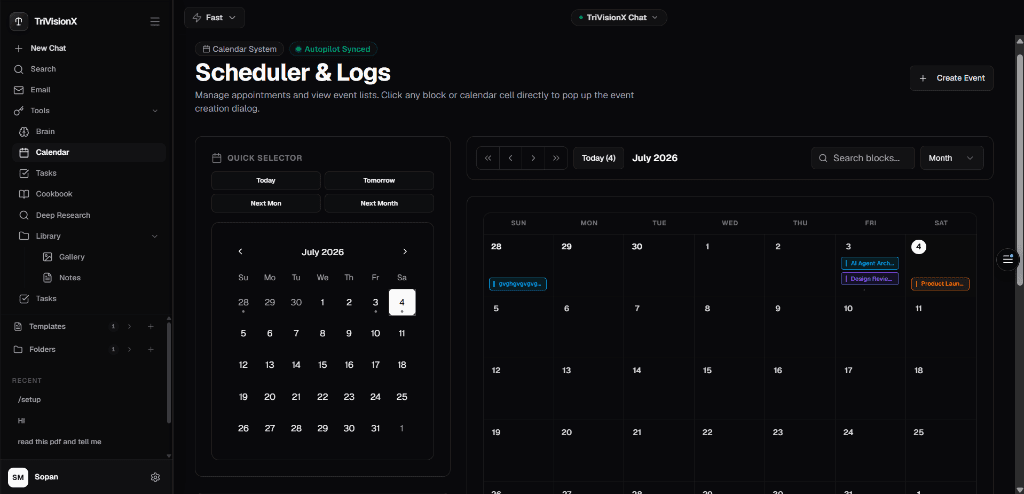

• Autopilot Syncing: Plan, drag-and-drop, and create events on an interactive calendar grid.
• System Logs Integration: Synchronize event reminders with task actions.

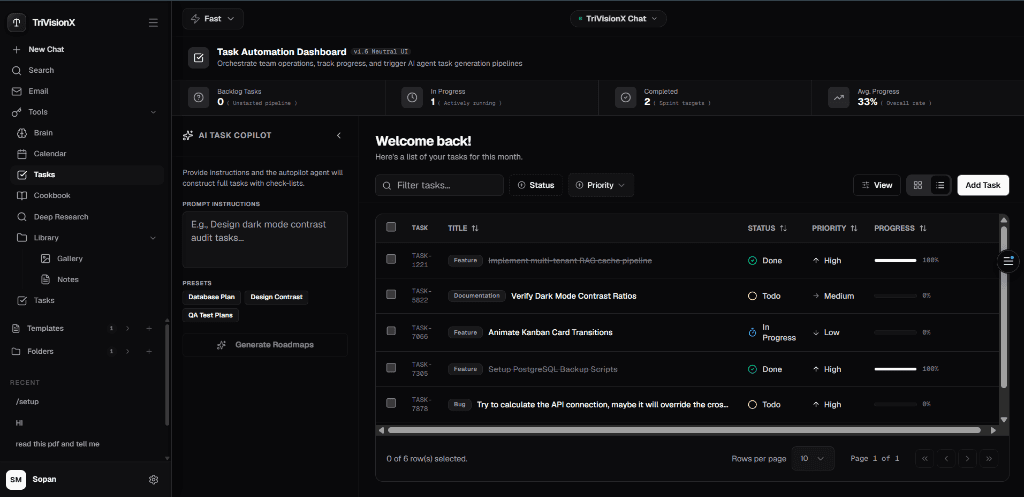

• Task Kanban Board: Keep track of todo backlogs, in-progress tasks, and completed logs.
• Rich-Text Notes: Write, store, and edit research notes directly alongside chat pipelines.

• Secure Sessions: JSON Web Token (JWT) stateful authorization with refresh limits.
• Social OAuth2: Fast login integrations for both Google and GitHub providers.

trivisionx-ai/
├── backend/                  # FastAPI Web Server & AI Agents
│   ├── src/
│   │   ├── agents/           # LangGraph workflows, nodes, and custom prompts
│   │   │   └── langgraph/    # Graph schemas, state mappings, and nodes
│   │   ├── api/              # API endpoints, controllers, and routing
│   │   ├── core/             # Centralized settings, security, and LLM factory
│   │   ├── database/         # MongoDB connections and repository patterns
│   │   ├── middleware/       # Compression, request logs, and shutdown controls
│   │   ├── models/           # ODM / Pydantic schemas for data entities
│   │   ├── rag/              # Ingestion, Pinecone vector stores, and embeddings
│   │   └── services/         # Business logic for chat, emails, and notes
│   ├── tests/                # Pytest test suite
│   ├── Dockerfile            # Multi-stage Python build file
│   └── index.py              # Main application execution entrypoint
│
├── frontend/                 # Next.js 15 Client Web App
│   ├── app/                  # Pages, routes, and global CSS
│   ├── components/           # UI elements (Sidebar, Email, Brain, Calendar, Tasks)
│   ├── hooks/                # Custom React state hooks
│   ├── lib/                  # Shared API client helpers and fonts
│   ├── public/               # Static assets (icons, SVGs, screenshots)
│   ├── __tests__/            # Vitest unit test suite
│   ├── Dockerfile            # Bun-to-Node standalone execution docker build
│   └── package.json          # Dependency configurations

• Planner Agent: Parses user prompts to decide whether to query documents, generate code, or execute competitive research.
• Retriever Agent: Performs semantic MMR vector searches on Pinecone using Google GenAI embeddings.
• Citation Agent: Audits retrieved chunks, checks relevance, and records document/page reference markers.
• Summarizer Agent: Consolidates context into markdown fragments.
• Reporter Agent: Compiles code blocks, formats tables, and streams responses to the client via Server-Sent Events (SSE).

• POST /api/auth/register — Create a new email/password account.
• POST /api/auth/login — Sign in and obtain a JWT Access Token.
• GET /api/auth/google — Initiates Google OAuth2 login flow.
• GET /api/auth/github — Initiates GitHub OAuth2 login flow.

• POST /api/chat/ — Stream real-time research outputs over Server-Sent Events (SSE).
• GET /api/models — Retrieve available model configurations from provider endpoints.
• GET /api/brain/keys — Retrieve saved provider credentials and API keys.
• POST /api/brain/keys — Store custom client provider credentials securely.

• POST /api/documents/upload — Parse and ingest document files (PDF/DOCX/TXT).
• GET /api/documents — List uploaded documents and parsing states.
• DELETE /api/documents/{id} — Delete a document and its corresponding Pinecone vectors.

• GET /api/tasks | POST /api/tasks — Manage task backlogs.
• GET /api/events | POST /api/events — Manage calendar events.
• GET /api/notes | POST /api/notes — Read and write rich-text research notes.
• GET /api/emails | POST /api/emails — List mailbox inbox records.
• POST /api/emails/draft — Autopilot draft compiler for email responses.

• Bun (Frontend dependencies)
• Python 3.11+ (Backend runtime environment)
• Google AI Studio API Key (For default Gemini model embeddings/synthesis)
• MongoDB Atlas & Pinecone Accounts

git clone https://github.com/sopanmunde/trivisionx-ai
cd trivisionx-ai

GOOGLE_API_KEY=your_gemini_key_here
GEMINI_MODEL=gemini-2.5-flash
MONGODB_URL=mongodb+srv://user:pass@cluster.mongodb.net/
DATABASE_NAME=trivisionx_db
PINECONE_API_KEY=your_pinecone_key_here
PINECONE_INDEX_NAME=trivisionx
SECRET_KEY=your-custom-jwt-secret-key
FRONTEND_URL=http://localhost:3000

NEXT_PUBLIC_API_BASE_URL=http://localhost:8000/api

cd backend
python -m venv .venv
# On Linux/macOS
source .venv/bin/activate
# On Windows
.venv\Scripts\activate

pip install -r requirements.txt
python index.py

cd ../frontend
bun install
bun dev

• Backend Build: Uses Python 3.11-slim, compiles dependencies in a separate build stage, and runs under a non-root system user.
• Frontend Build: Uses Bun to install and compile files, generating a Next.js standalone server directory run via lightweight Node.js.

• Frontend (Vercel): Point Vercel to frontend/ as the root directory. Ensure NEXT_PUBLIC_API_BASE_URL is set to the live FastAPI URL.
• Backend (Render): Set up a new Web Service using the backend folder. Environment configurations in Render will connect to the Atlas MongoDB and Pinecone instances.

• Fork the repository and create a branch.
• Review local setups in .github/CONTRIBUTING.md.
• Check coding standards and execute test suites:
  • Frontend tests: bun test
  • Backend tests: pytest
